Deliver every connection with reliable data performance

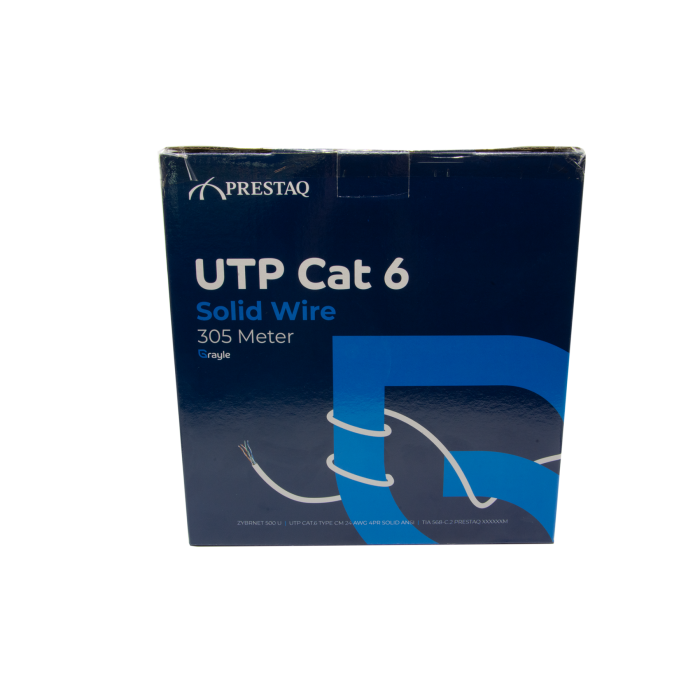

Cat6 U/UTP solid data cable 24AWG Dca LSOH - 305M Yellow
Description
On site, everything depends on speed and reliability. You want to pull cable without interruptions and continue directly to the next step. This Grayle cat 6 data cable on reel is developed for quick and smoth installations. With performance up to 250 MHz and solid copper conductors, you create a consistent and dependable network foundation using high-quality data cables.
Features
-
100% copper conductors ensure reliable and consistent signal transmission.
-
The solid conductor construction supports performance over longer cable routes.
-

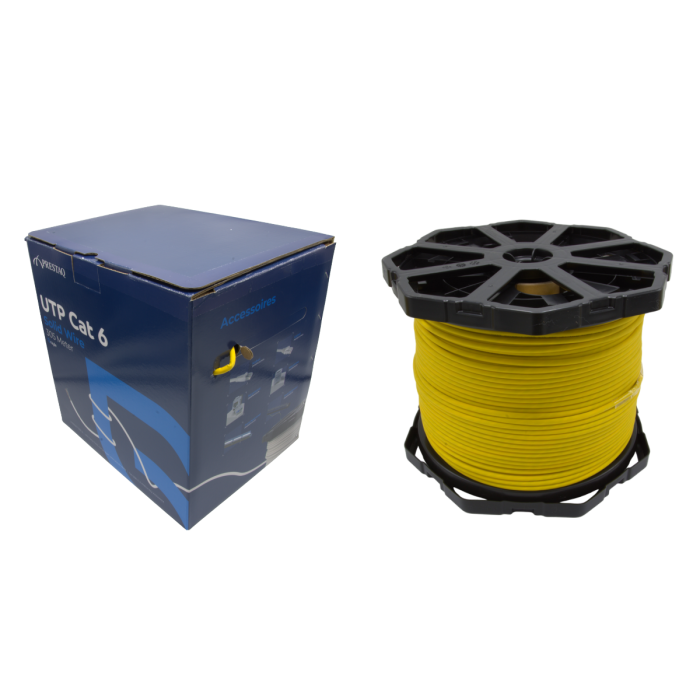

The Reel-in-Box design allows smooth cable pulling without tangling or blockage.
-
Available in multiple colours and lengths to maintain visual overview in installations.
-
The lszh cable jacket combined with CPR Dca classification (s3, d2, a3) reduces smoke and emissions in case of fire.
Applications
-
Patch cabinets and data racks where cables must be easily distinguishable.
-
LAN installations in office and commercial environments using data lan cables.
-
Projects where a reliable cat 6 data cable is required.
-
Installations where an internet data cable forms part of the network infrastructure.
Technical Characteristics
This cat 6 u/utp data cable is constructed with four twisted pairs and solid copper conductors (AWG24, approximately 0.511 mm). The conductors are insulated with HDPE, ensuring consistent impedance and reduced signal interference, supporting performance aligned with cat 6 specification requirements.
The cable supports transmission up to 250 MHz and complies with ANSI/TIA-568 standards. The lszh cable jacket combined with CPR classification Dca (s3, d2, a3) makes this cable suitable for indoor installations where fire behaviour is relevant.
As a solid copper cat6 cable in a u/utp cat6 configuration, it is designed for standard network environments without heavy electromagnetic interference, ensuring consistent data transmission across fixed installations.
If you want to build a network where data transmission remains consistent and your installation runs efficiently from start to finish, this cable is a reliable choice on site.
Downloads
Specifications
| ZN500BC13943050 |
| Yellow |
| U/UTP |
| 6 |
| 24 |
| None |
| 08719357026350 |
| 1 piece |
