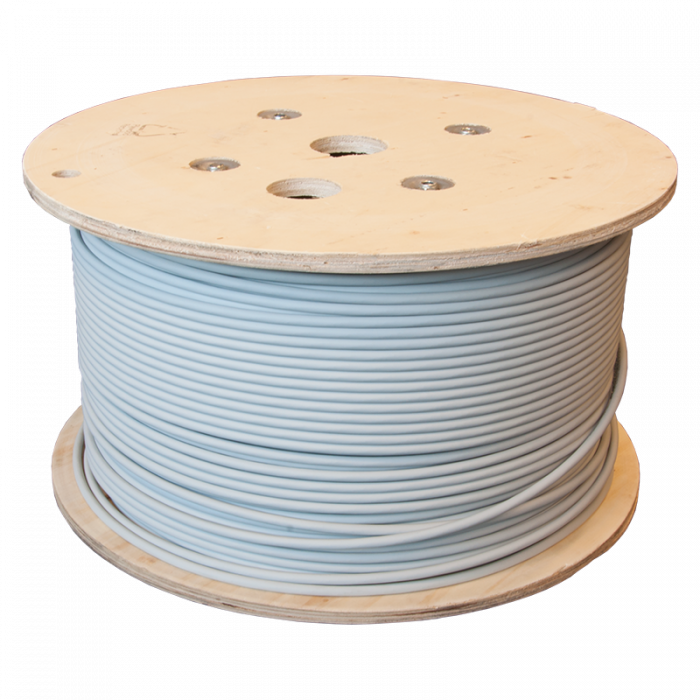

Cat6 U/UTP solid data cable 24AWG Eca LSOH - 500M Gray

During installation work, you don’t want to think about your cable — it simply needs to perform as expected. Especially when running longer cable routes and maintaining installation speed.

This Grayle cat6 data cable is developed for standard applications where efficiency and dependable signal transmission are required across your network.

Features

Applications

Technical Characteristics

This copper cat 6 cable is constructed with four twisted pairs and solid copper conductors, supporting consistent signal transmission in environments where Cat6 performance is required. The conductors are insulated with HDPE, contributing to controlled impedance and reduced interference.

The PVC outer jacket has an average thickness of approximately 0.45 mm and a total cable diameter of around 5.8 mm, allowing predictable handling during installation. The cable supports Cat6 performance up to 250 MHz and complies with ANSI/TIA-568-C.2 standards.

The maximum conductor resistance is 9.38 Ω/100m and the maximum pulling tension is 110 N. As a data cable cat 6 in a U/UTP configuration, it is designed for standard network environments without heavy electromagnetic interference.

If you want to install a network where data transmission remains consistent and your workflow continues without delays, this cable offers a practical solution for your project.
