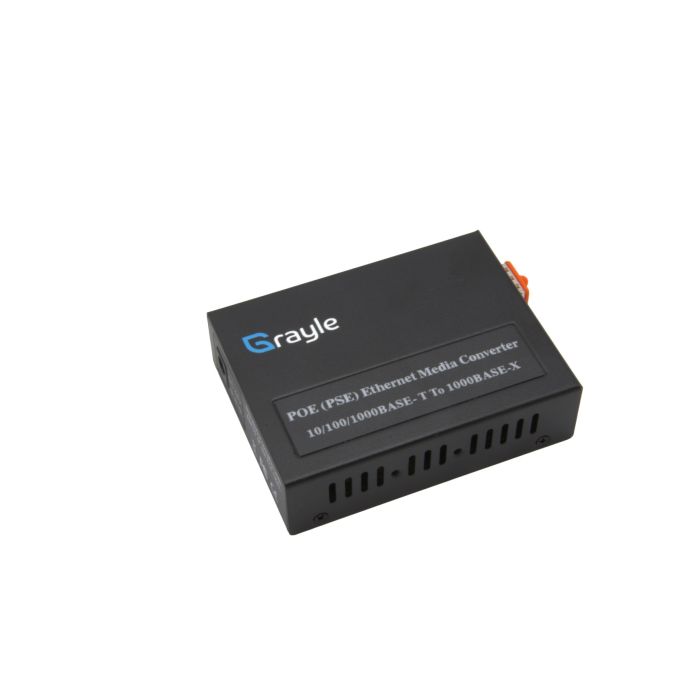

Fiber Optic Media Converter SFP-slot PoE-PSE - RJ45

Want to extend your network to spots that are normally hard to reach, while bringing both the fiber connection and the power for the connected device to that location? This fiber media converter with PoE-PSE — which stands for Power Sourcing Equipment, meaning a device that supplies power directly to connected network equipment — turns your fiber link into a 1GB RJ45 connection and passes power to the connected device at the same time. That makes network installations possible at locations without a dedicated power supply, without having to touch the existing electrical infrastructure.

Benefits

• Two functions in one device: media converter and PoE injector combined.
• Supplies power according to IEEE 802.3af (PoE, up to 15.4 W) for lighter devices and IEEE 802.3at (PoE+, up to 30 W) for devices with higher power needs.
• Power and network traffic run over one single cable, so less wiring and easier installation.
• Free choice of SFP modules for different fiber types and distances.
• Fits a 19-inch rack chassis with multiple converters, for larger network cabinets.

Applications

• Mount an IP camera on a rooftop, light pole or perimeter fence without a separate power supply.
• Install a wireless access point in a ceiling or on an exterior wall, even where there is no power outlet.
• Connect VoIP phones at workstations that sit far from a power socket.
• Build out a security network with a DVR system and multiple camera positions spread across the site.
• Link an outdoor post or remote installation to your main network.
• Connect a UTP switch to a fiber backbone on the other side of the building or site.
• Suited to camera positions along traffic or transit routes, car parks and access roads.
• Usable in retail, hotel or event venues for temporary camera or WiFi setups.

Technical features

The converter has one RJ45 port and one SFP slot for the fiber link. On the fiber side, the distance depends on the SFP module: up to 550 m with multimode modules, up to 120 km with single-mode modules and up to 100 km with BiDi modules (BiDirectional — modules that send traffic in both directions over a single strand of fiber, rather than using two separate strands). The converter meets the Ethernet specifications IEEE 802.3i, 802.3u, 802.3ab and 802.3z, with flow control to IEEE 802.3x. The unit itself uses less than 3 W (separate from the PoE power passed through) and works reliably between 0 and +50 °C. LEDs clearly indicate power and network activity.

Want to put this PoE media converter to work in your installation? Order it, choose the SFP module that fits your fiber link, and plug it in where you need it. Questions about the right PoE wattage or module choice? We're happy to advise.
