Fiber Optic Outdoor Singlemode HDPE OS2 9/125 – The Backbone of Modern Networks

The digital world is evolving rapidly. With the rise of fiber optic internet, cloud computing, the Internet of Things (IoT), and 5G technology, the demand for high-speed data transmission and reliable networks is growing exponentially. Fiber optic cables form the backbone of modern network infrastructures, offering unmatched performance in speed, stability, and long-distance signal transmission.

▪️Higher Speed – Fiber optic transmits data at the speed of light instead of electricity.

▪️Less Signal Loss – Data can be transmitted over long distances without degradation.

▪️No Electromagnetic Interference (EMI) – Ideal for industrial and high-tech environments.

▪️Durability – Fiber optic cables are less prone to wear and tear compared to copper network cables.

▪️Future-Proof – Fiber optic supports speeds of 100Gbps and beyond, whereas copper is limited to 10Gbps.

At Grayle, we understand the importance of a robust network and provide high-quality fiber optic solutions tailored for data centers, industrial applications, ISPs, and Smart Cities. Our OS2 9/125 HDPE-coated fiber optic cable is designed for outdoor use, ensuring maximum protection against weather conditions, mechanical stress, and signal loss.

1. Superior Performance & High-Speed Data Transmission

◽OS2 singlemode fiber with attenuation <0.21 dB/km at 1550 nm.
◽Ideal for backbone networks, data centers, and telecom infrastructures.
◽Supports 10G, 40G, and 100G networks without signal degradation.
◽Compatible with KPN Fiber, Ziggo Fiber, Delta Network, and other FTTH providers.

2. Maximum Durability & Protection

▪️HDPE (High-Density Polyethylene) outer sheath protects against:

  ◽UV radiation – Prevents degradation from sunlight.

  ◽Moisture & rain – 100% waterproof, ideal for underground installations.

  ◽Mechanical stress – Resistant to impacts and pulling forces up to 1200N.

▪️Designed for direct burial – Can be buried underground without additional protection.
▪️Resistant to extreme temperatures from -40°C to +70°C.

3. Flexible & Easy Installation

▪️Loose tube design – Prevents microbends and minimizes sensitivity to temperature fluctuations.

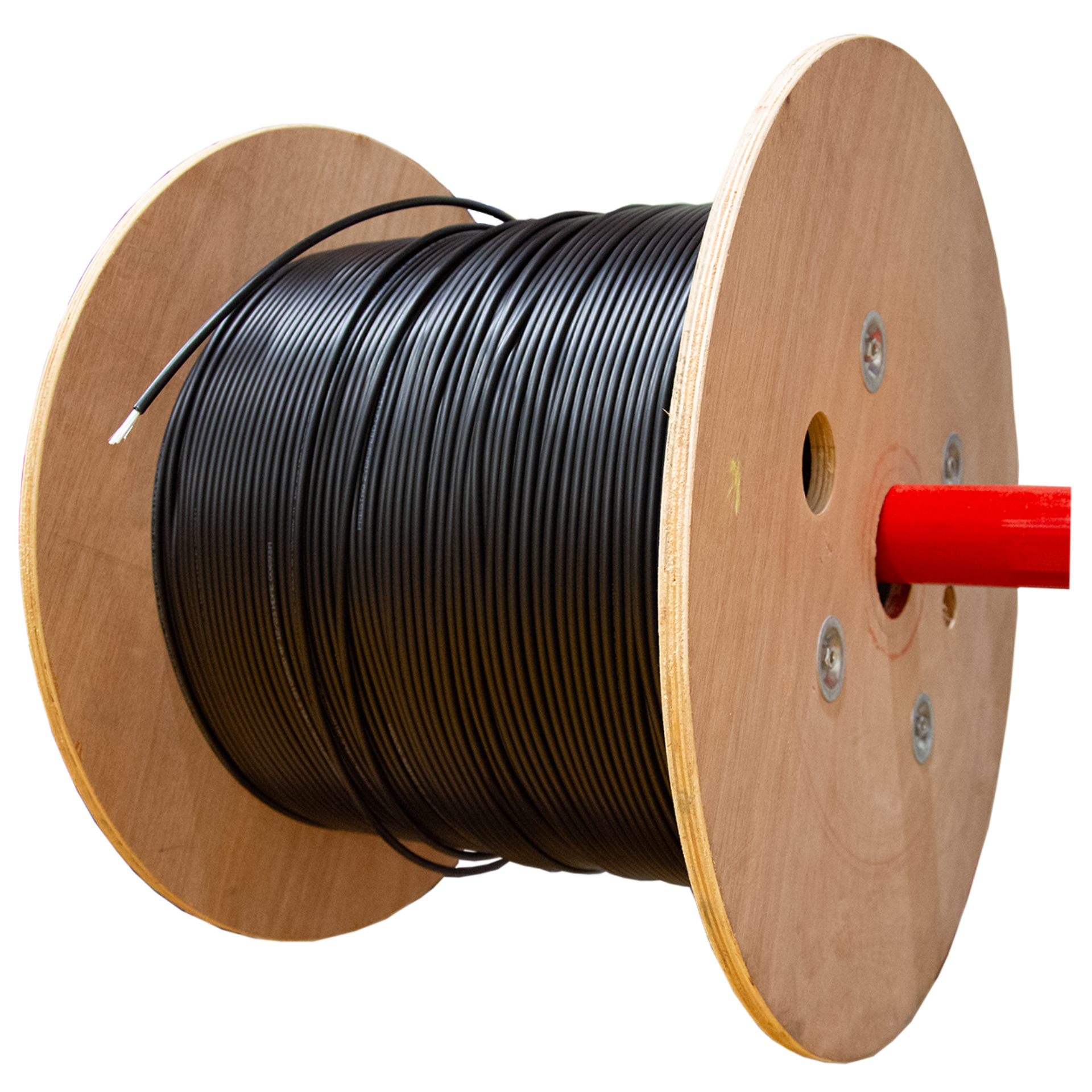

▪️Available in 1000-meter wooden reels – Easy to unroll and handle.
▪️Compatible with standard fiber optic connectors such as LC, SC, FC, and ST.

4. Compliance with International Standards

▪️IEC 60794 – Standard for fiber optic cabling.
▪️ITU-T G.652D & G.657A1 – Low bending sensitivity and high transmission quality.
▪️REACH & RoHS certified – Free from hazardous substances and environmentally friendly.

This cable is designed for professional network installations and provides exceptional performance in outdoor environments:

Data Centers & Cloud Computing

▪️Ideal for backbone connections within and between data centers.
▪️Supports high-speed, stable data transfer for server rooms.

Telecom Networks & Internet Providers

▪️Suitable for fiber backbone infrastructures of KPN, Ziggo, Delta Fiber, and other providers.
▪️Essential for broadband networks, ISPs, and Fiber-to-the-Home (FTTH) projects.

Industrial Networks & Smart Cities

▪️Resistant to harsh industrial environments and electromagnetic interference (EMI).
▪️Supports IoT devices, surveillance cameras, traffic systems, and energy management.

Fiber-to-the-Home (FTTH) & Fiber-to-the-Building (FTTB)

▪️Perfect for corporate campuses, residential projects, and urban fiber optic rollouts.
▪️Lower latency and higher reliability compared to DSL or coaxial connections.

1. How far can this cable transmit a signal without amplification?

40 km at 1550 nm, 10 km at 1310 nm.

2. Is this cable suitable for underground installation?

Yes, the HDPE sheath is designed for direct burial.

3. Does this cable support 10G, 40G, and 100G Ethernet?

Yes, this OS2 singlemode cable supports network speeds up to 100Gbps.

4. How is the cable delivered?

On a 1000-meter wooden reel, easy to unroll and handle.

5. Which fiber optic connectors are compatible?

SC, LC, FC, and ST connectors.

Do you want to build a future-proof fiber optic network? Contact us today and explore the possibilities!
