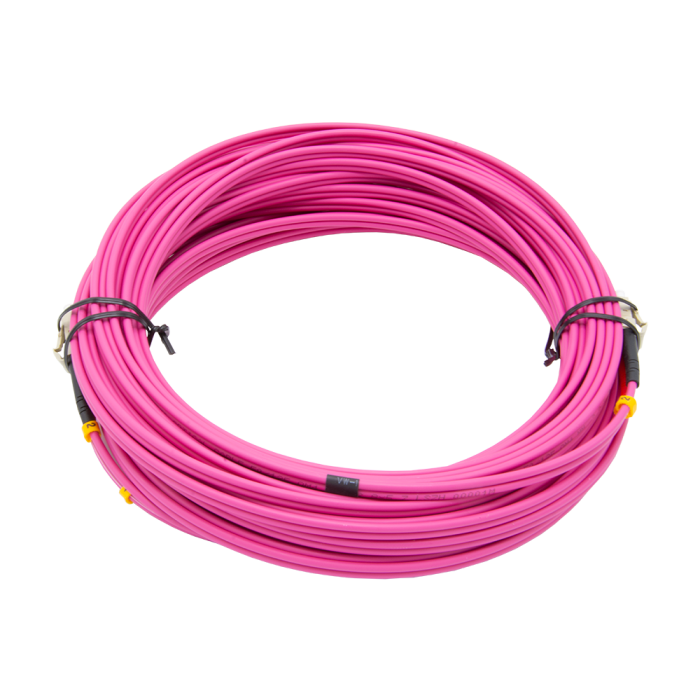

OM4 MM Armored Fiber Optic Cable LC/LC Duplex - 15M
Description
Speed makes the difference. The OM4 MM Armored Fiber Optic Cable LC/LC Duplex brings out the best in your network, with room for the heaviest data flows of today and tomorrow.
OM4 is built to move huge amounts of data at high speed, and this cable protects that performance with a sturdy metal layer around the glass fibre (armoured). So you get not only top speed, but also the assurance that this speed stays reliably up.
For anyone who wants to get the most out of their infrastructure, this cable is exactly what you are looking for.
Benefits
-
Gets the most out of your network thanks to high OM4 capacity.
-
Sturdy protection keeps top performance stable, even under load.
-
Ready for heavy data flows up to 400G.
-
An investment that keeps performing for years.
-
Safe LSZH jacket: little smoke in case of fire and halogen-free.
-
Simple, reliable connection with the LC connector.
Applications
-
Networks with high demands on speed and throughput.
-
Demanding data centre and server environments.
-
Links that must deliver maximum performance.
-
Infrastructure you want to prepare for the future.
-
Spots where speed and reliability must go hand in hand.
Technical features
This cable uses OM4 glass fibre (50/125 µm) with an effective bandwidth (the amount of data the fibre can carry at once) of ≥4700 MHz·km at 850 nm — more than enough for the fastest networks.
The LC connector keeps signal loss low at typically ≤0.20 dB. A metal armour tube surrounds the fibre, wrapped in a 3.0 mm LSZH jacket.
The cable works between -20 °C and +70 °C and meets international fiber optic cable specifications, including TIA-492AAAD, RoHS and REACH.
Whether the link runs internal traffic or fiber optic cable internet feeds, performance stays strong. Do not bend the cable tighter than 20D (moving) or 10D (fixed). Indoor use only.
Take your network to the next level. Order the armoured OM4 LC/LC patch cord from Grayle and get the most out of every connection.
Downloads
Specifications
| ZSPC7010909947 |
| 2 |
| LC |
| LC |
| 15 |
| Purple |
| Duplex |
| OM4 |
| Other |
| 08719357026060 |
| 1 piece |
