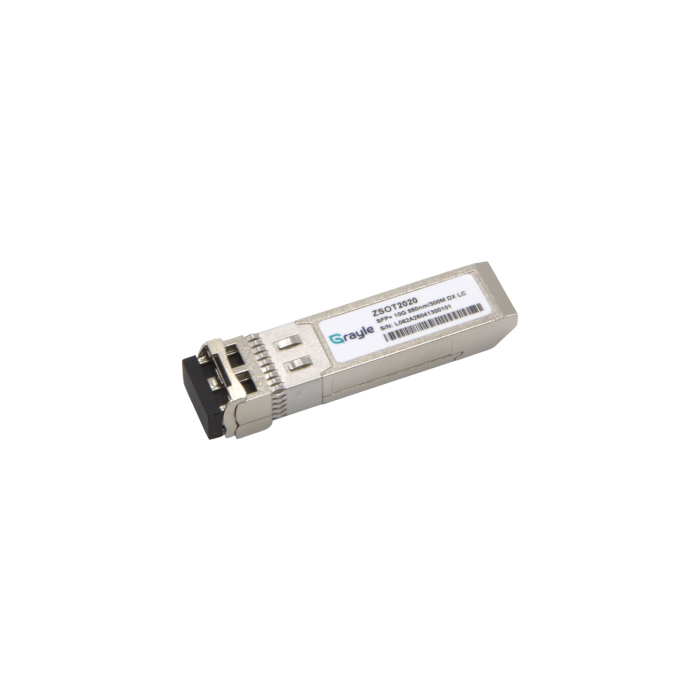

SFP+ transceiver 10G 300m duplex lc multimode 850nm

Do you need a short 10G fiber connection between switches, servers, distribution rooms or data cabinets within the same business location? This Grayle sfp+ 10g multimode module is designed for professional 10GBASE-SR links over multimode fiber. With an 850nm VCSEL laser, duplex LC interface and hot-pluggable SFP+ form factor, this module is suitable for compact 10G connections where stability, clear network structure and fast installation matter.

This sfp+ multimode transceiver supports a data rate up to 10.3125 Gbps and a reach of up to 300 meters over 50µm multimode fiber. That makes it suitable for short fiber routes in business networks, such as connections between access switches, core switches, servers or network equipment in technical rooms. For installations where you need a reliable 10G connection via LC multimode fiber, this 10gbase sr module provides a practical solution without switching to copper cabling.

Benefits

• Designed for 10GBASE-SR — suitable for short 10G fiber links within professional networks.
• Multimode fiber via duplex LC — practical for connections between switches, servers, data cabinets and distribution rooms.
• 850nm VCSEL laser — built for fast transmission over multimode fiber.
• Reach up to 300 meters — suitable for 50µm MMF according to the stated specifications.
• DDMI functionality available — temperature, voltage, bias current, TX power and RX power can be monitored internally.
• SFP+ MSA and SFF-8472 compliant — designed for compatible SFP+ network equipment.
• Optional coding service — when your equipment requires brand-specific identification, coding can be applied as an additional service.

Applications

• Create a 10G connection between two switches via 10gbase-sr multimode fiber.
• Connect a server to an SFP+ switch using a 10gbase sr sfp+ transceiver.
• Link two data cabinets within the same building using a 10g sfp+ sr module and duplex LC fiber.
• Build a short fiber route between a distribution switch and a core switch via sfp+ 10gbase-sr.
• Connect access switches to a central switch using 850nm multimode fiber.
• Support 10G Fibre Channel applications within compatible infrastructure.
• Use an existing SFP+ fiber port for multimode transmission up to 300 meters.

Technical features

This SFP+ duplex LC transceiver supports a data rate up to 10.3125 Gbps and is designed for 10GBASE-SR applications over multimode fiber. Optical transmission is handled by an 850nm VCSEL laser with a PIN photodetector on the receiver side. According to the specifications, the module supports a fiber length up to 300 meters over 50µm core MMF. The module is compatible with IEEE 802.3ae 10GBASE-SR, SFP+ MSA, SFF-8472 and 10GFC.

The recommended power supply voltage is 3.13V to 3.47V, with 3.3V as the typical value. The specified supply current is 300 mA. The commercial operating case temperature runs from 0°C to +70°C. The industrial version is specified for -40°C to +85°C. Storage temperature is -40°C to +85°C, and the allowed relative humidity range is 5% to 95%.

The optical transmitter operates within a wavelength range of 840 to 860nm, with 850nm as the typical value. Average launched power is specified between -6 and -1 dBm. On the receiver side, the specsheet lists a receiver sensitivity of -10 dBm and an optical power input overload of -3 dBm. DDMI information is internally calibrated for temperature, voltage, bias current, TX power and RX power.

This module is intended for professional multimode fiber connections via duplex LC. It is not a 10GBASE-T copper module and does not use an RJ45 interface. This makes it suitable when you want to connect network equipment through short, stable and structured optical 10gbase-sr links within one business environment.

Need to build a short 10G fiber link via multimode LC? Choose this Grayle SFP+ transceiver 10G 300m duplex lc multimode 850nm for a professional 10GBASE-SR connection within your business network.
