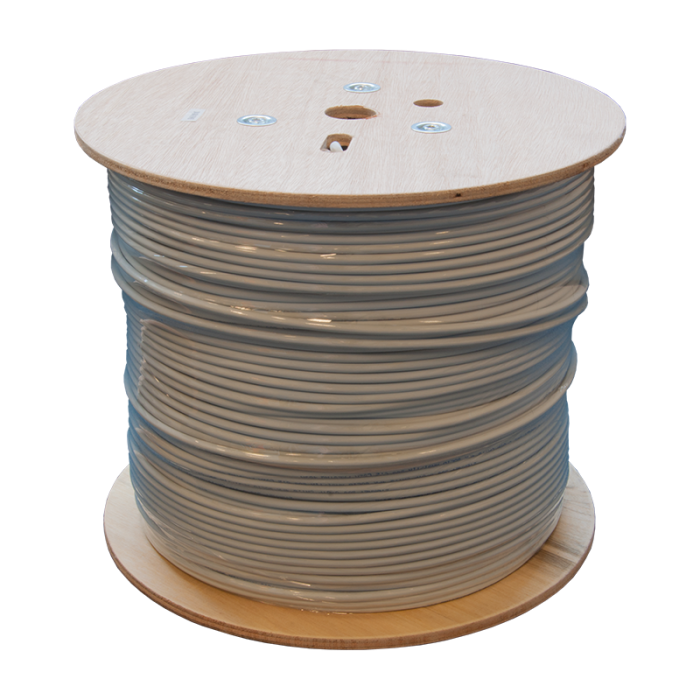

Zybrnet Cat 6A U/UTP 10GB Per Meter – Dca Installation Cable

Looking for fixed cabling that handles 10 Gigabit network traffic? This Cat 6A U/UTP installation cable carries data over copper to workstations, wall outlets and patch panels.

You order it per metre, so you get exactly the length your project needs, without leftover material or waste.

Whether you run a few metres to a wall outlet or fit out an entire building with fixed cabling, you decide how much you need.

The cable is built for permanent installation: you fix it in conduit, in the wall or in cable trays, and from there it provides a reliable connection for years. That way you build a network ready for today's demands and the years ahead.

Benefits

Applications

Technical features

The cable has eight copper wires that together form four pairs. Each pair is twisted around itself, which blocks interference, so your connection stays stable.

The wires are solid copper with a thickness of AWG23 (0.566 mm), giving you a reliable 10 Gigabit signal. Around them sits a double plastic sheath with an outer diameter of about 7.5 mm, in grey.

The sheath is LSZH material: in case of fire it releases little smoke and no corrosive acid, which is safer inside buildings. The cable falls under fire class Dca (s2 d2 a1).

During installation you can apply up to 110 N (around 11 kg) of pulling force without damaging the cable. The nominal voltage is 300 V. Category 6A per IEC.

Ready to move your network to 10 Gigabit? Order this Cat 6A installation cable per metre and build a future-ready link. Questions about termination? We are happy to help.
