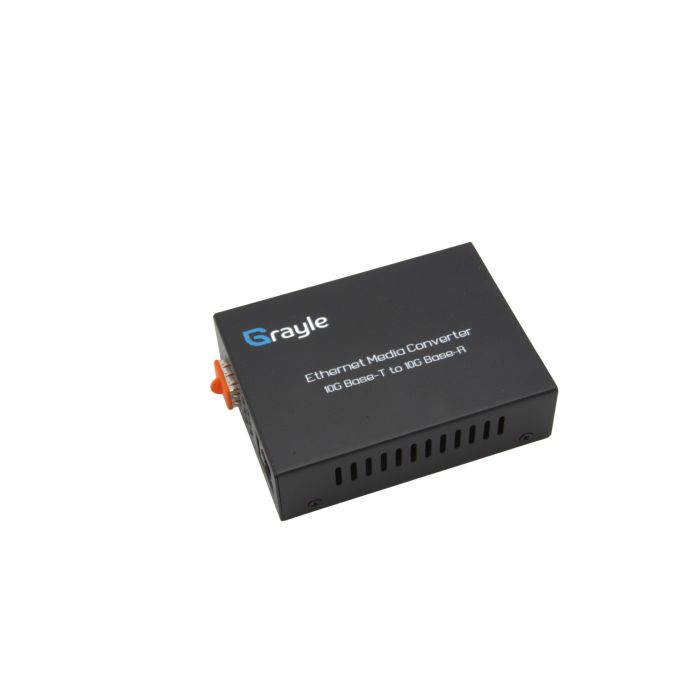

Fiber Optic Media Converter SFP+ 10G RJ45

Do you have a 10G network that needs to reach further than copper allows, or are you preparing your infrastructure for the step up to 10 Gigabit? This fiber media converter turns 10G copper traffic into 10G fiber and automatically matches the speed your network delivers: from 1G through 2.5G and 5G up to the full 10G.

The fiber path you use and how far you reach are decided by the SFP+ module you place in the slot.

Benefits

10G speed that automatically matches your network — from 1G through 2.5G and 5G up to the full 10G.
Transparent transport with minimal latency, suited to latency-sensitive traffic and datacenter applications.
Supports jumbo frames for the efficient handling of large data packets in video, virtualisation and backup workloads.
Compact and power-efficient, despite the 10G performance.
Usable as a standalone unit or as a slide-in module in a 19-inch chassis.

Applications

Link two 10G switches over long single-mode fiber runs, up to 80 km per converter.
Connect a 10G server to a network switch in another rack or room.
Give a 10G application a fiber uplink where the copper reach falls short.
Suited as a transition solution for networks moving step by step from 1G to 10G via 2.5G or 5G.
Build a high-performance link between server rooms, datacenters or telecom cabinets.
Connect a 10G switch without a built-in fiber port to an existing fiber run.
For backbone connections in industrial, business or educational datacenter environments.
Usable for video-editing workstations, NAS storage or NVR systems where high bandwidth is required.

Technical features

On the copper side, the converter works with the 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T standards, and on the fiber side with 1000BASE-X, 2500BASE-X, 5GBASE-R and 10GBASE-R.

Which cable you need on the copper side depends on the speed: Cat5 (up to 100 m) for 1G, Cat5e (up to 50 m) for 2.5G and 5G, and Cat6a (up to 50 m) for the full 10G. On the fiber side, the path is decided by the SFP+ module you place in the slot.

The unit supports hot plugging, runs on an external 12 V DC adaptor with a maximum consumption of 5 W, and works reliably between 0 and +55 °C. LEDs clearly indicate power and network activity.

Ready to prepare your network for 10G or already make the speed jumps to 2.5G and 5G? Order this 10G media converter, choose the SFP+ module that fits your fiber link, and plug it into your equipment. Questions about the right module or setup? We're happy to advise.
